JSF (F35) JOINT STRIKE FIGHTER, INTERNATIONAL

















The Joint Strike Fighter, the JSF, is being developed by Lockheed Martin Aeronautics Company for the US Air Force, Navy and Marine Corps and the UK Royal Navy. The stealthy, supersonic multi-role fighter is to be designated the F-35. The JSF is being built in three variants: a conventional take-off and landing aircraft (CTOL) for the US Air Force; a carrier based variant (CV) for the US Navy; and a short take-off and vertical landing (STOVL) aircraft for the US Marine Corps and the Royal Navy. A 70  90% commonality is required for all variants.

The requirement is for: USAF F-35A air-to-ground strike aircraft, replacing F-16 and A-10, complementing F-22 (1763); USMC F-35B  STOVL strike fighter to replace F/A-18B/C and AV-8B (480); UK RN F-35C  STOVL strike fighter to replace Sea Harriers (60); US Navy F-35C  first-day-of-war strike fighter to replace F/A-18B/C and A-6, complementing the F/A-18E/F (480 aircraft). In January 2001, the UK MOD signed a memorandum of understanding to co-operate in the SDD (System Development and Demonstration) phase of JSF and, in September 2002, selected the STOVL variant to fulfil the Future Joint Combat Aircraft (FJCA) requirement. Following the contract award, other nations signed up to the SDD phase are: Australia, Canada, Denmark, Italy, Netherlands, Norway, Singapore and Turkey.

The Concept Demonstration Phase of the programme began in November 1996 with the award of contracts to two consortia, led by Boeing Aerospace and Lockheed Martin. The contracts involved the building of demonstrator aircraft for three different configurations of JSF, with one of the two consortia to be selected for the development and manufacture of all three variants.

In October 2001, an international team led by Lockheed Martin was awarded the contract to build JSF. An initial 22 aircraft (14 flying test aircraft and eight ground-test aircraft) will be built in the programs System Development and Demonstration (SDD) phase. Flight testing will be carried out at Edwards Air Force Base, California, and Naval Air Station, Patuxent River, Maryland. In April 2003, JSF completed a successful Preliminary Design Review (PDR). The Critical Design Review has been postponed from April 2004 to 2005. The first F-35A has begun airframe assembly and is scheduled for its first flight in late 2006. The F-35A fighter is expected to enter service in 2008, the F-35B in 2012.

The Lockheed Martin JSF team includes Northrop Grumman, BAE Systems, Pratt and Whitney and Rolls-Royce. Final assembly of the aircraft will take place at Lockheed Martin's Fort Worth plant in Texas. Major subassemblies will be produced by Northrop Grumman Integrated Systems at El Segundo, California and BAE Systems at Samlesbury, Lancashire, England. BAE Systems is responsible for the design and integration of the aft fuselage, horizontal and vertical tails and the wing-fold mechanism for the CV variant, using experience from the Harrier STOVL programme.

DESIGN
In order to minimise the structural weight and complexity of assembly, the wingbox section integrates the wing and fuselage section into one piece. To minimise radar signature, sweep angles are identical for the leading and trailing edges of the wing and tail (planform alignment). The fuselage and canopy have sloping sides. The seam of the canopy and the weapon bay doors are sawtoothed and the vertical tails are canted at an angle.

The Marine variant of JSF is very similar to the Air Force variant, but with a slightly shorter range because some of the space used for fuel is used for the lift fan of the STOVL propulsion system. The main differences between the naval variant and the other versions of JSF are associated with the carrier operations. The internal structure of the naval version is very strong to withstand the high loading of catapult assisted launches and tailhook arrested landings. The aircraft has larger wing and tail control surfaces for low speed approaches for carrier landing. Larger leading edge flaps and foldable wingtip sections provide a larger wing area, which provides an increased range and payload capacity.

The canopy, radar and most of the avionics are common to the three variants.

WEAPONS
Weapons are carried in two parallel bays located in front of the landing gear. Each weapons bay is fitted with two hardpoints for carrying a range of bombs and missiles. Weapons to be cleared for internal carriage include: JDAM (Joint Direct Attack Munition), CBU-105 WCMD (Wind-Corrected Munitions Dispenser) for the Sensor-Fuzed Weapon, JSOW (Joint StandOff Weapon), Paveway II guided bombs, AIM-120C AMRAAM air-to-air missile; for external carriage: JASSM (Joint Air-to-Surface Standoff Missile), AIM-9X Sidewinder and Storm Shadow cruise missile.

In September 2002, General Dynamics Armament and Technical Products was selected as the gun system integrator. The air force variant has an internally mounted gun. The Carrier and Marine variants can have an external gun pod fitted.

TARGETING
Lockheed Martin Missile & Fire Control and Northrop Grumman Electronic Sensors and Systems are jointly responsible for the JSF electro-optical system. A Lockheed Martin electro-optical targeting system (EOTS) will provide long-range detection and precision targeting, along with the Northrop Grumman DAS (Distributed Aperture System) thermal imaging system. EOTS will be based on the Sniper XL pod developed for the F-16, which incorporates a mid-wave third generation FLIR, dual mode laser, CCD TV, laser tracker and laser marker. BAE Systems Avionics in Edinburgh, Scotland will provide the laser systems. DAS consists of multiple infrared cameras (supplied by Indigo Systems of Goleta, California) providing 360º coverage using advanced signal conditioning algorithms. As well as situational awareness, DAS provides navigation, missile warning and infrared search and track (IRST). EOTS is embedded under the aircraft's nose, and DAS sensors are fitted at multiple locations on the aircraft.

RADAR
Northrop Grumman Electronic Systems is developing the advanced electronically scanned array (AESA) multi-function radar. The AESA will combine an integrated radio frequency subsystem with a multifunction array. The radar system will also incorporate the agile beam steering capabilities developed for the APG-77.

COUNTERMEASURES
BAE Systems North America will be responsible for the JSF integrated electronic warfare suite, which will be installed internally and have some subsystems from Northrop Grumman. BAE is developing a new digital radar warning receiver for the F-35.

AVIONICS SYSTEMS
The following will supply the F-35 avionics systems: BAE Systems Avionics - side stick and throttle controls; Vision Systems International (a partnership between Kaiser Electronics and Elbit of Israel) - advanced helmet-mounted display; Ball Aerospace - Communications, Navigation and Integration (CNI) integrated body antenna suite (one S-band, two UHF, two radar altimeter, three L-band antennas per aircraft); Harris Corporation - advanced avionics systems, infrastructure, image processing, digital map software, fibre optics, high speed communications links and part of the Communications, Navigation and Information (CNI) System; Honeywell - radar altimeter, inertial navigation/global positioning system (INS/GPS) and air data transducers; Raytheon - 24-channel GPS (Global Positioning System) with digital anti-jam receiver (DAR).

SYSTEMS
Other suppliers will include: ATK Composites - upper wing skins; Vought Aircraft Industries - lower wing skins; Smiths Aerospace - electronic control systems and electrical power system (with Hamilton Sundstrand), integrated canopy frame; Honeywell - landing system's wheels and brakes, onboard oxygen-generating system (OBOGS), engine components, power and thermal management system driven by integrated auxiliary power unit (APU); Parker Aerospace - fuel system, hydraulics for lift fan, primary flight control electrohydrostatic actuators (with Moog Inc), engine controls and accessories; EDO Corporation - pneumatic weapon delivery system; Goodrich - lift-fan anti-icing system; Stork Aerospace - electrical wiring.

PROPULSION
Early production lots of all three variants will be powered by the Pratt and Whitney afterburning turbofan F-135 engine, a derivative of the F119 fitted on the F-22. Following production aircraft will be powered by either the F135 or the F-136 turbofan being developed by General Electric and Rolls-Royce. Hamilton Sundstrand is providing the engine control system and gearbox.

On the F-35B, the engine is coupled with a shaft-driven lift fan system for STOVL propulsion. The lift fan has been developed by Rolls-Royce Defence. Doors installed above and below the vertical fan open as the fin spins up to provide vertical lift. The main engine has a three bearing swivelling exhaust nozzle. The nozzle, which is supplemented by two roll control ducts on the inboard section of the wing, together with the vertical lift fan provide the required STOVL capability


In October 2001, an international team led by Lockheed Martin was awarded the contract to build the JSF Joint Strike Fighter.
The F-35A is the conventional take-off and landing (CTOL) variant of the JSF. The F-35C carrier based variant (CV) for the US Navy.

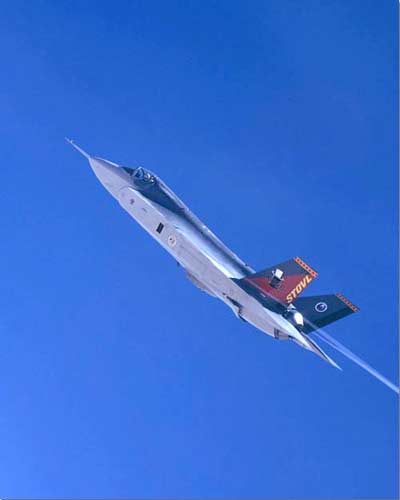

The F-35B short take-off and vertical landing (STOVL) variant for the US Marine Corps and the Royal Navy.
